MagnaPro 1250-2000 (Vortex), 3-phase

Product Code: 3475

£3,775.00 ex VAT

  • Application: Residential, PS, Commercial, Hospitality & Retail
  • Max Vertical: 8.2 m
  • Max Flow Rate: 8.2 l/sec
  • Discharge Size: 90 mm OD HDPE
  • Number of pumps: 1

Description

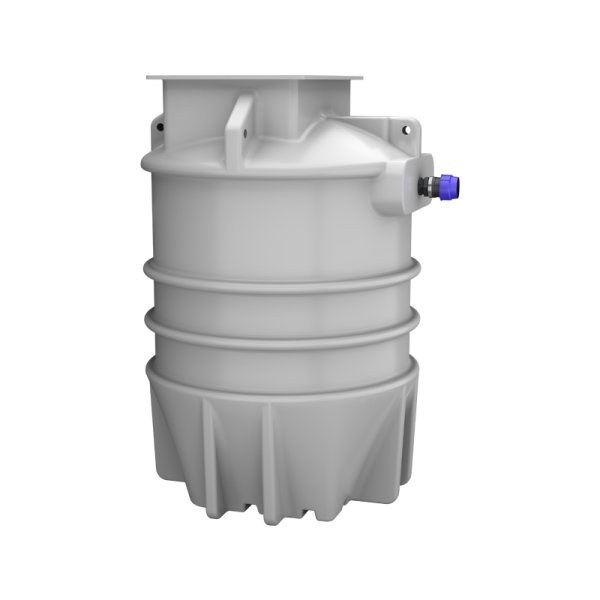

The MagnaPro 1250-2000 Vortex is a fully automatic packaged pumping station suitable for pumping grey, surface, storm or foul water to a higher level when gravity drainage is not possible and/or economical to install.

The system provides up to 1715 litre storage capacity depending on inlet depth. It is ideal for accepting waste from an extension, outbuilding, basement or similar.

Its three-phase pump provides higher torque to minimise blockages, increased energy efficiency, and improved reliability compared to a single-phase pump. Its vortex impellor provides reliable and effective pumping of grey and foul water.

The system comprises our award-winning polyethylene MagnaPro chamber, internal Class E PVC pipework and fittings, brass valves, control panel, float switches, a pedestal-mounted manual pump with vortex impellor, and an external compression adaptor for discharge to 90 mm OD HDPE.

It is easy to install as inlets can be positioned to your site’s requirements. Inlet information to be supplied at time of order, or can be drilled on site.

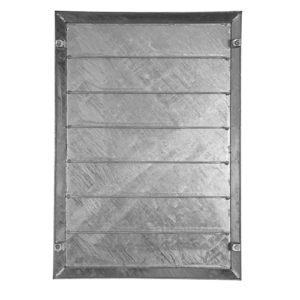

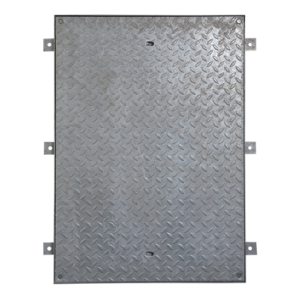

An access cover is not included. A range of access covers is available to suit your project requirements.

Our packaged pumping stations are built to last and designed to be easy to service.

KEY FEATURES

  • Vortex impellor for high flow rates
  • Three-phase pump for higher torque, increased energy efficiency, and improved reliability
  • Up to 1715 litres storage capacity
  • 60° benching
  • Compact chamber for limited space installations
  • Ideal for an extension, outbuilding, basement or similar application
  • 900 mm x 600 mm clear opening
  • Variable inlet positions to suit site
  • A range of alarms and remote alerts are available offering peace of mind
  • Quick and simple to install

SPECIFICATIONS

MagnaPro 1250 Vortex systems comply with:

  • BS EN 12050-1:2015 Wastewater lifting plants for buildings and sites. Lifting plants for wastewater containing faecal matter.
  • BS EN 12050-2:2015 Wastewater lifting plants for buildings and sites. Lifting plants for faecal‑free wastewater.
