BlueMax

Product Code: 2075

£190.00 ex VAT

  • Application: Residential, PS, Commercial, Hospitality & Retail
  • Max Vertical: 4.5m
  • Max Flow Rate: 0.081 l/sec
  • Discharge Size: 9.5mm
  • Number of Pumps: 1

Description

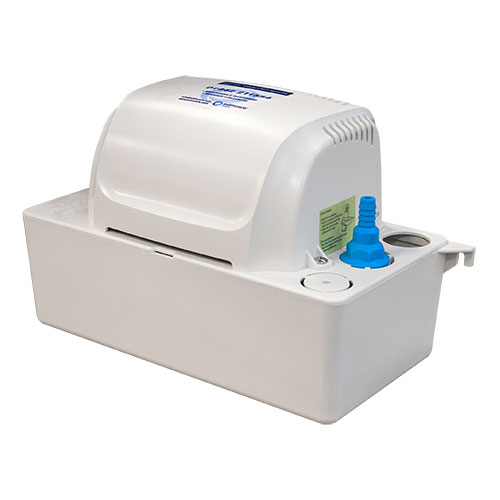

The BlueMax fully automatic pumping station is suitable for pumping condensate to a higher level when gravity drainage is not possible and/or economical to install.

The robust and unobtrusive system can be wall or floor mounted for versatile installation. The compact chamber is ideal for accepting waste from condensate boilers, steam ovens, refrigeration systems or similar. Utilising Edincare’s ‘OpenFlow’ impellor technology the range discharges through small bore pipe work for installation through busy service voids and roof spaces. The system is fitted with the facility to connect to a building management system or similar providing early warning of pump failure.

The system consists of a sealed chamber, internal pipe work and fittings, automatic pump and small bore evacuation tube outlet connection.

Key Features:

• Compact, sealed chamber for simple installation
• Reliable motor for very low flows
• Fault signal for BMS provided as standard
• The BlueMax is easy to install due to the small chamber discharge pipe sizes.
