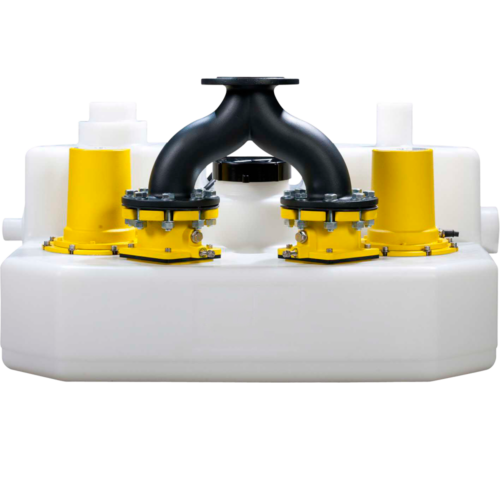

Atlas-K 150 Twin (Single Phase)

The Atlas 150-K Twin is a fully automatic floor mounted
pumping station suitable for pumping both foul and storm
water to a higher level when gravity drainage is not possible
and/or economical to install. Like all our floor mounted
pumping stations, it does not require civils works which makes
it ideal for retrofitting into an existing buildings. Its compact
chamber allows passage through standard door openings.

It features two powerful vortex pumps powered by a single
phase supply via the control panel (included).

It can accept inlets from many orientations up to DN 150 to
suit the applications and site requirements. There is a flanged
DN 80 discharge with a 4” sleeve and clips (for discharge to
DN 80/100).

Key features

• Suitable for pumping grey and foul water in accordance with BS EN 12050-1
• Quick and simple installation, without needing civils works
• Compact, robust, odour-tight polyethylene tank
• Compact dimensions that allow passage through a standard door opening
• Control panel with high level alarm and volt‑free contact
• A range of accessories
